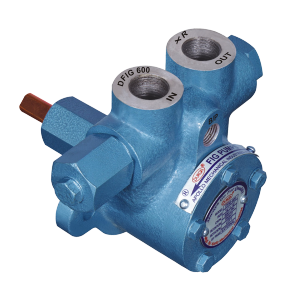

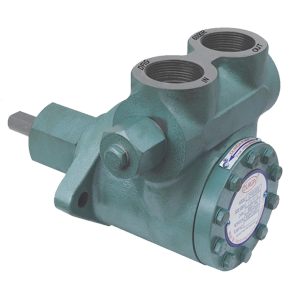

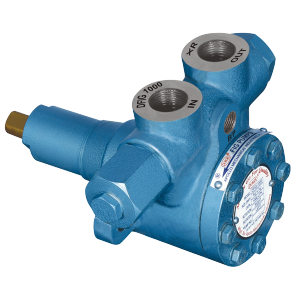

Fuel Injection Internal Gear Pump
Call Now
WhatsApp
AvailabilityIn Stock
CategoryFuel Injection Internal Gear Pumps
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%
Fuel Injection Internal Gear Pump Details
Salient Feature:
We are very glad to inform that DURGA FUEL injection internal gear pumps are prepared by graded cast iron. These gear and shafted Rotor give better performance with closed tolerance to give long life. This FIG pumps is flange mounted kind. These pumps are self priming type produces max. vacuum determined by the cavity between the gear teeth. This pump has modified profile teeth cutting to give accurate capacity with in the pressure range. This pump runs liquid up to 500 cst viscosity and upto temperature 200 °C .
- FIG Pumps is Technically Application for Pumping in Oil Burner, Boiler, Hydraulic, Heating Systems, Fuel Injection with Pressuring and Transfer.
- This Pumps Handling Fuel Like LDO, FO Diseal, HSD and LSHS.
- This Pumps is for use in ?Non Corrosive and Non abrasive Liquids.
- The Mechanical Seal to ensure Zero Leakage at Maximum Pressure.
- This Pumps is Various Type of Industrial Application like can be used as well as Booster Pump for Diseal Locomotive, Oil Transfer and Heating System. This Pump is Built in Pressure Relief Valves and Capacity by-pass.
Material of Constructions
| Part | Material For FIG |
|---|---|
| Body | IIS.210 FG 220 C.I. Grade |
| Eccentric | IIS.210 FG 220 C.I. Grade |
| Idler Gear | SAE-8620 |
| Rotor shaft | SAE-8620 |
| Sealing | Mechanical seal |
| Piston | EN-8 |
| Adjusting Screw | EN-8 |
| Spring | Spring Steel |
Technical Specification
| Model | Suction & Delivery Size | Capacity In LPH At 1440 RPM | Pressure kg/cm² | Motor HP | |
|---|---|---|---|---|---|
| 3 kg/cm² mm | 30 kg/cm² mm | ||||
| DFIG 60 | 3/8" x 3/8" | 60 | 0-30 | 0.25 | 1 |
| DFIG 90 | 3/8" x 3/8" | 90 | 0-30 | 0.25 | 1 |
| DFIG 120 | 3/8" x 3/8" | 120 | 0-30 | 0.25 | 1 |
| DFIG 150 | 1/2" x 1/2" | 150 | 0-30 | 0.50 | 1.5 |
| DFIG 300 | 1/2" x 1/2" | 300 | 0-30 | 0.50 | 1.5 |
| DFIG 450 | 1/2" x 1/2" | 450 | 0-30 | 0.75 | 2 |
| DFIG 600 | 1/2" x 1/2" | 600 | 0-30 | 0.75 | 2 |
| DFIG1000 | 3/4" x 3/4" | 1000 | 0-30 | 1 | 3 |
| DFIG1500 | 3/4" x 3/4" | 1500 | 0-30 | 1 | 3 |
| DFIG2000 | 3/4" x 3/4" | 2000 | 0-30 | 2 | 5 |
| DFIG2500 | 3/4" x 3/4" | 2500 | 0-30 | 2 | 5 |
| DFIG3000 | 1" x 1" | 3000 | 0-30 | 3 | 7.5 |
| DFIG4500 | 1" x 1" | 4500 | 0-30 | 3 | 10 |
| DFIG6000 | 1 ½" x 1 ½" | 6000 | 0-30 | 3 | 15 |
