Lubrication Pump
Lubrication Pump Details

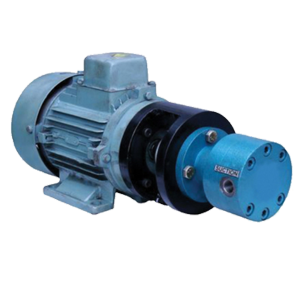

Lubrication Pump (Rotary Mini Pump) (Series - DRMP)
Apollo mechanical Industries is Manufacturer Of Small Size of Rotary Gear Pump Specially For Lubrication Purpose.
Apollo mechanical Industries is Supplier - Exporter of Lubrication Pump Under The Brand name Of "DURGA PUMPS" Series DRMP.
Apollo mechanical Industries is Manufacturer Of Small Size of Rotary Gear Pump Specially For Lubrication Purpose.
This pumps Are Available Of Two Types
1) Non - Reversible : In these Pumps Shaft Can Rotate Only As Per The Direction Shown By An Arrow On The Pumps. Suction & Pressure Port Are Indicated Accordingly .
2) Reversible : in These Pumps Shaft Can Rotate Either In Or Out Direction Suction And pressure Ports Are indicated Accordingly Minimum RPM of Shaft Required is 500.
Material of Constructions
| Part | Material For DRMP |
|---|---|
| Body | IS.210 FG 220 C.I. Grade |
| Back Cover | IS.210 FG 220 C.I. Grade |
| Shaft | EN-19 |
| Gear | Sintered Iron |
| Bush Bearing | Non Ferrous Sintered Bronze |
| Sealing | Neoprene oil Seal |
| Key for coupling | EN-8 |
Technical Specification
| Model | Capacity in LPM at 1440 RPM | Suction & Delivery Size | Motor Rating Required [HP] |
|---|---|---|---|
| DRMP-0.5 | 0.5 | 1/8" x 1/8" | 0.25 |
| DRMP-1 | 1 | 1/4" x 1/4" | 0.25 |
| DRMP-3 | 3 | 1/4" x 1/4" | 0.25 |
| DRMP-6 | 6 | 1/4" x 1/4" | 0.5 |
| DRMP-10 | 10 | 3/8" x 3/8" | 0.5 |
| DRMP-16 | 16 | 1/2" x 1/2" | 1.0 |
| DRMP-25 | 25 | 1/2" x 1/2" | 1.5 |
| DRMP-40 | 40 | 1" x 1" | 1.5 |
Application
- Lubrication of gear boxes.
- Head stocks.
- Transfer of oil.
- Low pressure hydraulic power packs..
- Rotary oil fillers.
- Automobile and Machine tools.
- Heavy machineries and equipments.
